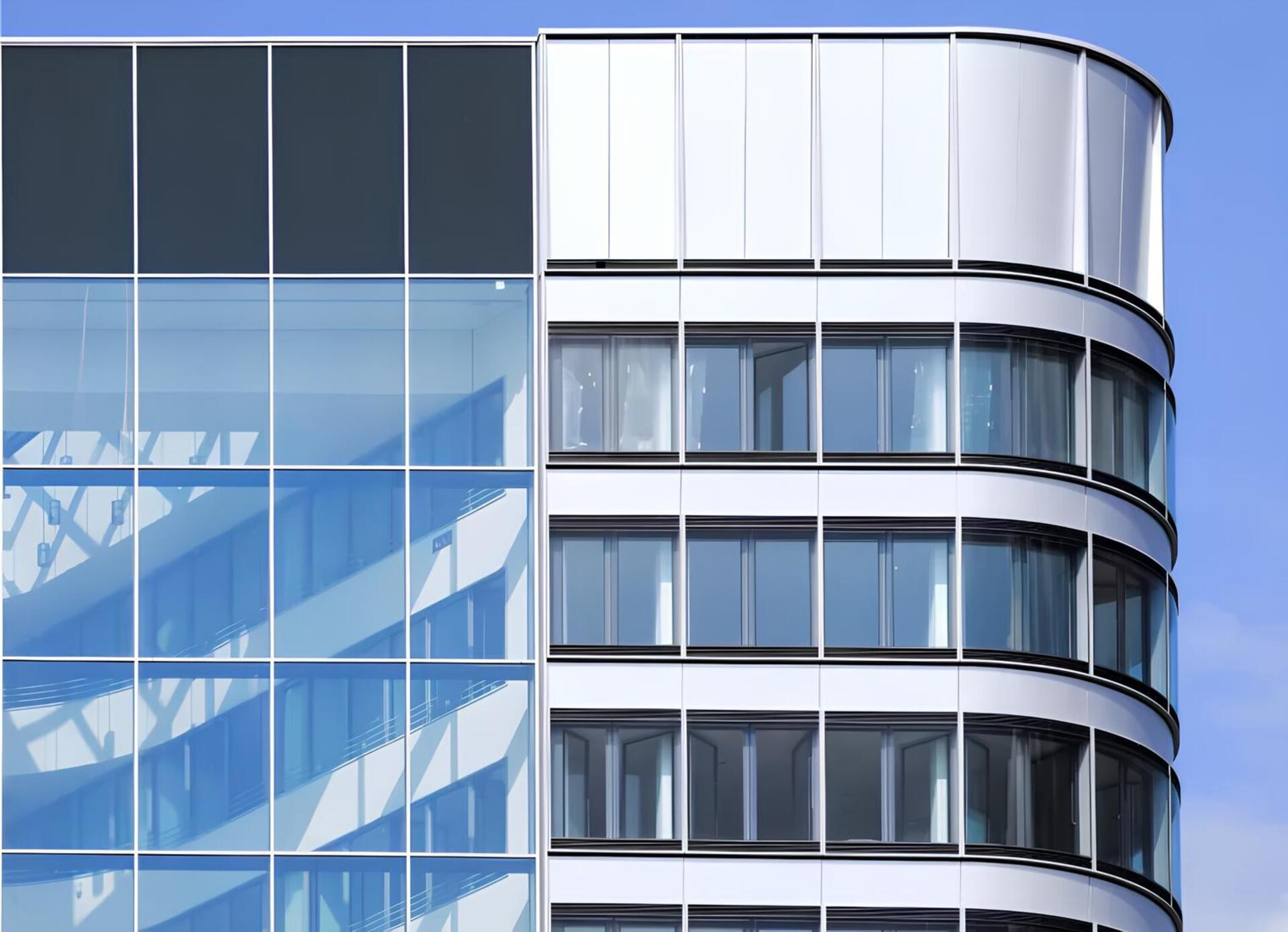

FACADE – UNITIZED

The Facade – Unitized System represents the pinnacle of efficiency and security in facade construction. Unlike the Stick System, Unitized systems consist of prefabricated panels (units) produced and assembled off-site in a controlled environment, then transported and quickly installed on the building. This method allows for extremely fast installation times and reduces risks associated with on-site work, while also ensuring superior quality and precision.

The precision in manufacturing these units translates into improved airtightness, thermal insulation, and sound insulation, making the Unitized system ideal for large and complex buildings. From a security standpoint, the prefabricated panels can integrate reinforced materials and locking systems, providing high resistance to burglary and other threats. Alusynco provides comprehensive Unitized facade solutions, ensuring flawless application and long-term performance for projects demanding speed, quality, and maximum security.

.
AWW - Air
Ae 1200, according to EN12153
AWW - Wind
2000/3300, according to EN12179
AWW - Water
Re 1200, according to EN12155
Sound
Depending on design. For example up to 45 db is possible.
Fire
Not as standard.
Smoke
Not as standard.
Burglary
Up to RC5 according to EN 1627-1630
Bullet
Up to FB7-NS according to EN 1522 -1523
Explosion
5 – 100 kg TNT with different standoff (m), pressure (Pa), duration (ms). As per case, standoff, pressure, duration & GSA/ISO/EN levels will be needed.
Thermal
U-value depending on infills and profile geometry. For Example Ucw ≥ 0,7 W/m²K is possible.
Air Resistance
CLASS 1
Wind Resistance
C1
Mechanism
Multi joint lock
